Product Description

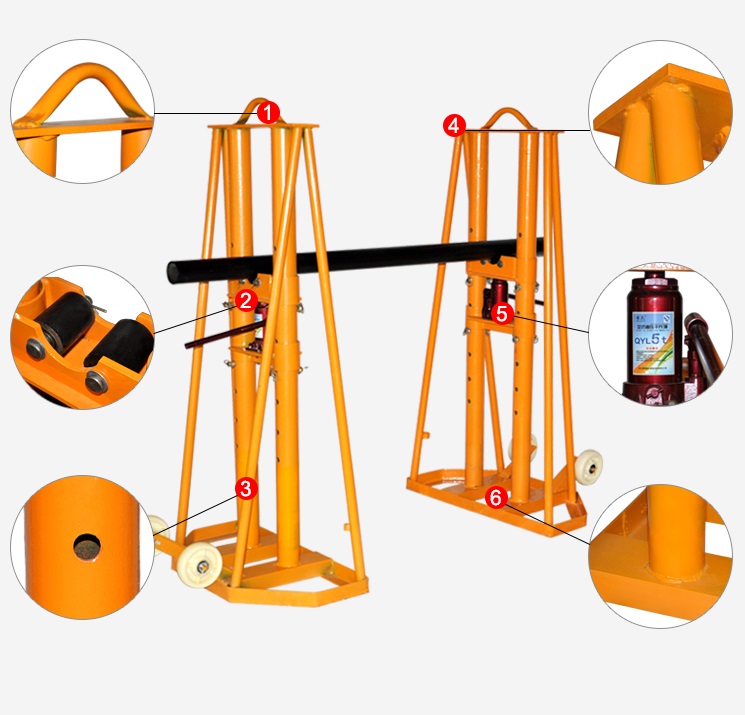

Roller bearing, Flexible pay-off, Cast steel sleeve wheel and built-in bearing design Make the reel flexible, easy to release the cable

Model
load      (Ton)
Stand Hight    (mm)
Beam Length*Dia*Thickness    (mm)
Drum Dia (mm)
CJS5
5
1500
1500*73*6
250
CJS6
6
1500
1500*73*6
250
CJS8
8
1500
1500*73*6
250
CJS10
10
1500
1500*73*6
250
CJS12
12
1500
1500*73*6
250
