Product Description

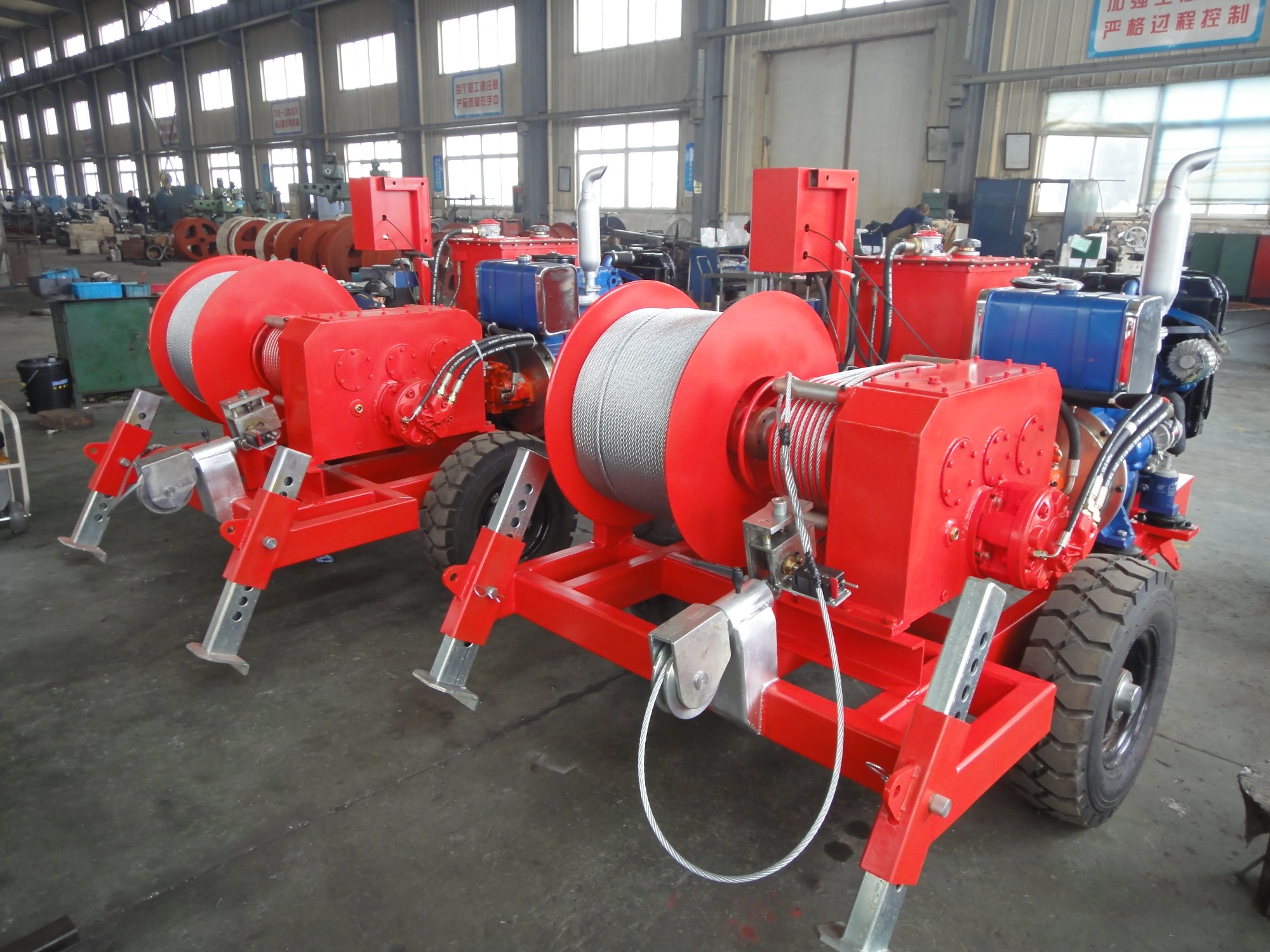

Model DQ Cable Pulling Winch
Underground Cable Pulling Machine hydraulic puller DQ40
|
Order number |
21131 |
21135 |
|
|
Model |
DQ20 |
DQ40 |
|
|
Continuous linepull (kN) |
20 |
40 |
|
|
Linespeed (m/min) |
0～14 |
0～12 |
|
|
Steelrope diameter (mm) |
Φ9.3 |
Φ11 |
|
|
Steelrope length (m) |
600 |
650 |
|
|
Motor |
Power (hp) |
13 |
24 |
|
Speed (rpm) |
1800 |
2000 |
|
|
Dimension (m) |
3.27×1.13×1.65 |
3.67×1.80×1.50 |
|
|
Weight (kg) |
650 |
1100 |
|
·uses :to string earthground cable .
Features:
- Equipped with Water cooled diesel engine system
- Equipped with hydraulic pump and motor, hydraulic steppless speed control system
- with max. pulling force preset, pulling force could be displayed on the machine.
- With over-load protect system, the machine will be stopped if the pulling cable get stuck in duct.
- The speed could be displayed digitally, the pull length could be displayed on board.
- With automatic winding system, the winding force could be adjusted.
- With rigid axle for towing
Dimension (mm): 3670x1800x1500
Weight (kg): 2000
