Anti-twisting Braided Steel Rope | Non-rotating Braided Pulling Rope for Power Stringing
Anti-twisting braided steel rope, GB/T20118, DIN, JIS standard, 7–36mm, high carbon galvanized steel. For overhead line conductor pulling & tensioning, anti-rotation, flexible, custom length available.
Product Description

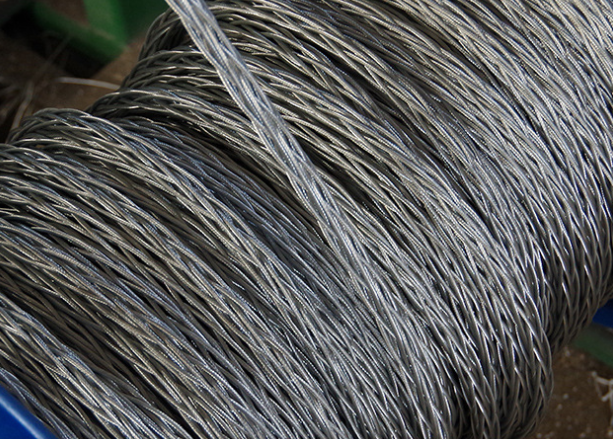

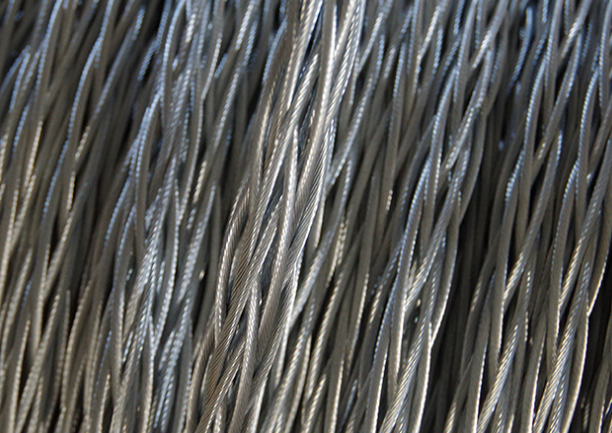

Anti-twisting braided steel rope is widely used for overhead power transmission line conductor pulling and tension pay-off works. It is woven by 1960MPa high-strength galvanized steel wire, featuring excellent anti-rotation performance, soft texture and low dispersion resistance.
- Standard: GB/T20118-2006, DIN, JIS etc
- Construction: 4x8, 4x12, 6x8, 6x12
- Diameter(mm): 7mm-36mm
- Material: high carbon steel, GB/T4354-1994 or JIS G3506-1996
- Uses: applied to mechanical pulling and tensioning release conductors, unsuitable to pulling ropes for small diameter winch.
- Feature: braided 1960 Mpa high-strength galvanized steel wire, rotation resistance during pulling, supple and disperse resistance.
- Notes: the specification and length of steel rope can be custom according to your request.
Specification Table
表格
| Structure | Diameter(mm) | Single bundle diameter (mm) | Breaking force (kN) | Production length (m) |
|---|---|---|---|---|
| Square eight strands | 7 | Φ2.0 | 34.38 | 1000 |
| Square eight strands | 9 | Φ2.5 | 53.90 | 1000 |
| Square eight strands | 11 | Φ3.0 | 76.94 | 1000 |
| Square eight strands | 13 | Φ3.5 | 105.04 | 1000 |
| Square eight strands | 15 | Φ4 | 116.6 | 1000 |
| Square twelve strands | 11 | Φ2.5 | 80.8 | 800 |
| Square twelve strands | 13 | Φ3.0 | 115.4 | 800 |
| Square twelve strands | 15 | Φ3.5 | 157.55 | 800 |
| Square twelve strands | 18 | Φ4.0 | 206.27 | 800 |
| Square twelve strands | 20 | Φ4.5 | 260.3 | 800 |
| Hexagon twelve strands | 11 | Φ2.5 | 80.8 | 1000 |
| Hexagon twelve strands | 13 | Φ3.0 | 115.4 | 1000 |
| Hexagon twelve strands | 15 | Φ3.5 | 157.5 | 1000 |
| Hexagon twelve strands | 18 | Φ4.0 | 205.71 | 1000 |
| Hexagon twelve strands | 20 | Φ4.5 | 260.34 | 1000 |
| Hexagon twelve strands | 24 | Φ5.0 | 320.82 | 800 |
| Hexagon eighth strands | 21 | Φ3.0 | 173.1 | 600 |
| Hexagon eighth strands | 24 | Φ3.5 | 236.33 | 600 |
| Hexagon eighth strands | 27 | Φ4.0 | 309.40 | 600 |
| Hexagon eighth strands | 30 | Φ4.5 | 389.28 | 600 |
| Hexagon eighth strands | 33 | Φ5.0 | 481.22 | 600 |
| Hexagon eighth strands | 36 | Φ5.5 | 581.75 | 600 |
FAQ
Q1: What is the main advantage of anti-twisting braided steel rope?
A1: It will not twist and knot during conductor pulling, stable tension, suitable for overhead line stringing construction.
Q2: Can I customize the length?
A2: Yes, we support custom length according to your project requirements.
Q3: Is this rope suitable for small winch?
A3: Not recommended. It is designed for large tensioner and puller system for power transmission line.
Q4: What is the tensile strength of raw material?
A4: The galvanized steel wire is 1960 MPa high strength grade.
Q5: What standards can your products meet?
A5: We comply with GB/T20118-2006, DIN, JIS standards.
