CP-700 Hand Hydraulic Pump FYQ-400 Split Hydraulic Crimping Tool Set, 16-400mm² Cable Crimper for Wire Terminal
FYQ-400 split hydraulic crimping tool matched with CP-700 manual hydraulic pump, crimping range 16-400mm² for copper and aluminum conductors. Supplied with crimping dies set, widely used for overhead line, cable lug crimping in power transmission projects. High crimping force, easy operation, durable for field work.
- 型号
- CP-700/FYQ-400
Product Description

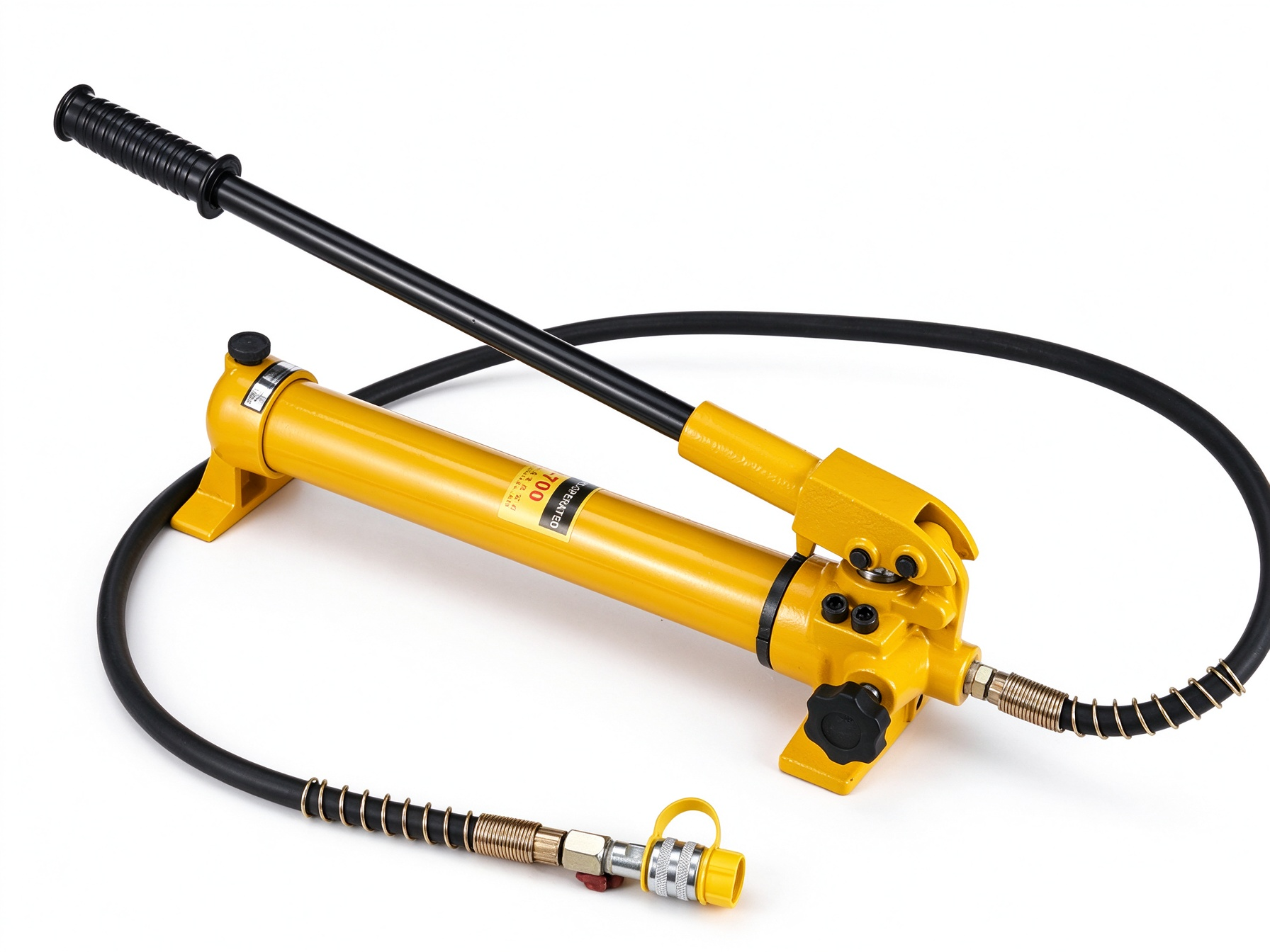

Model: CP-700
Max Output: 700 bar / 10000 psi
Oil Capacity: 900 cc
Dimensions: 510×140×150 mm
Weight: 12 kg
Flow Rate: High pressure: 2.3 cc/min; Low pressure: 13 cc/min
Output Pressure: High pressure: 700 kg/cm²; Low pressure: 20 kg/cm²

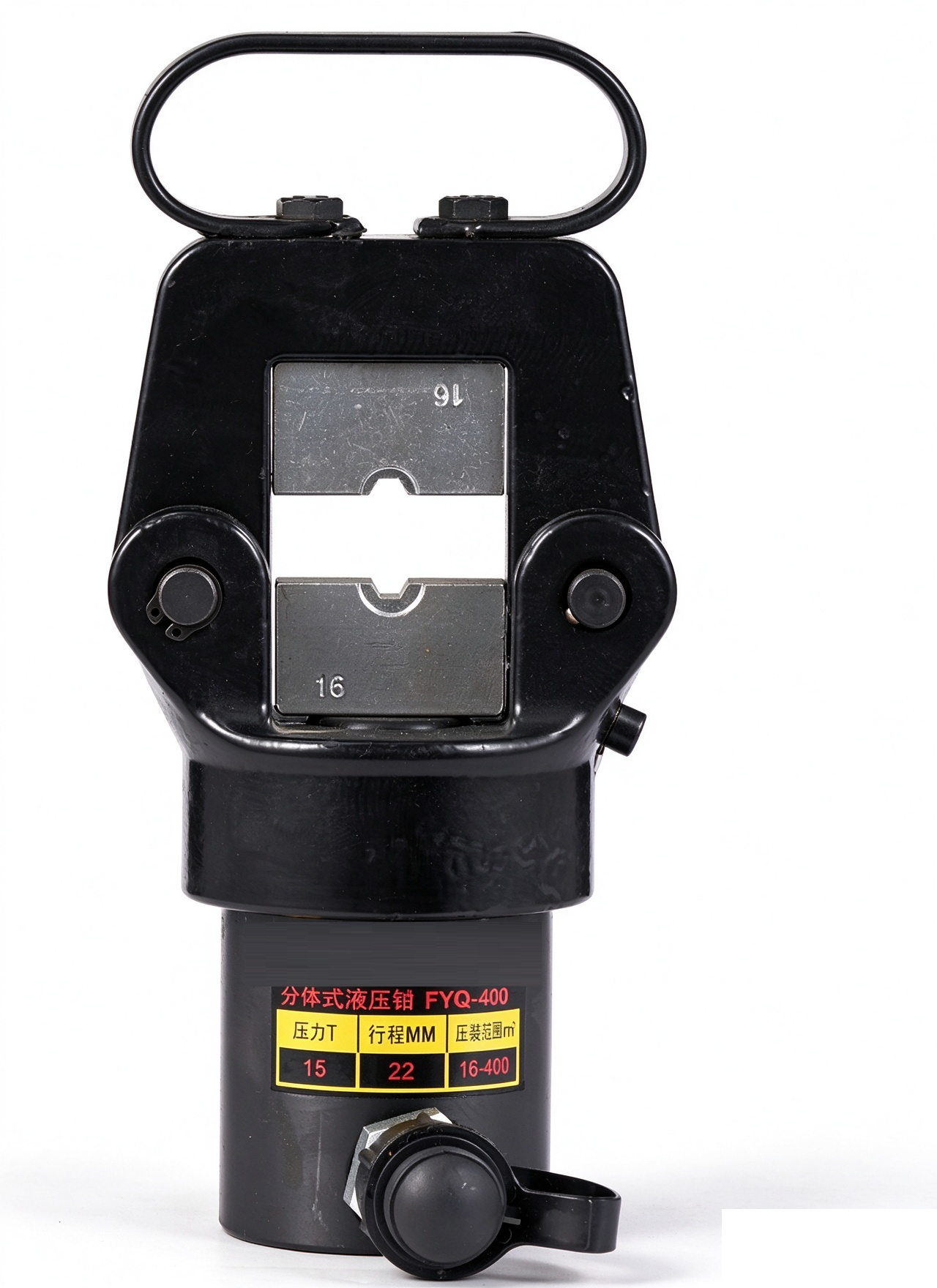

Model: FYQ-400
Output Force 15T Stroke 22 mm
Crimping Capacity 16–400 mm² Weight 9 kg
Crimping Type Hexagonal crimping Package /

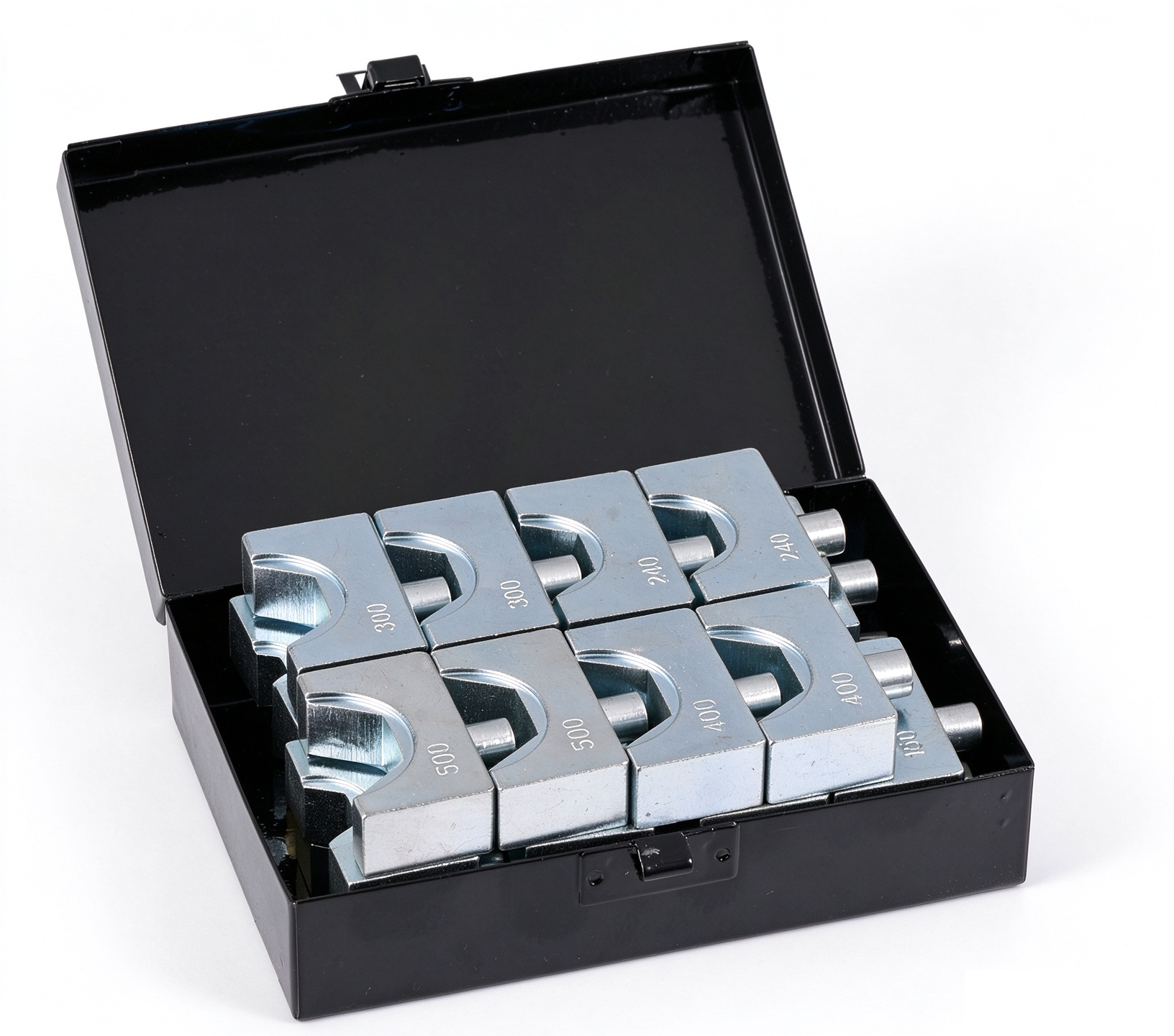

Die Sets Included 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400
