Product Description

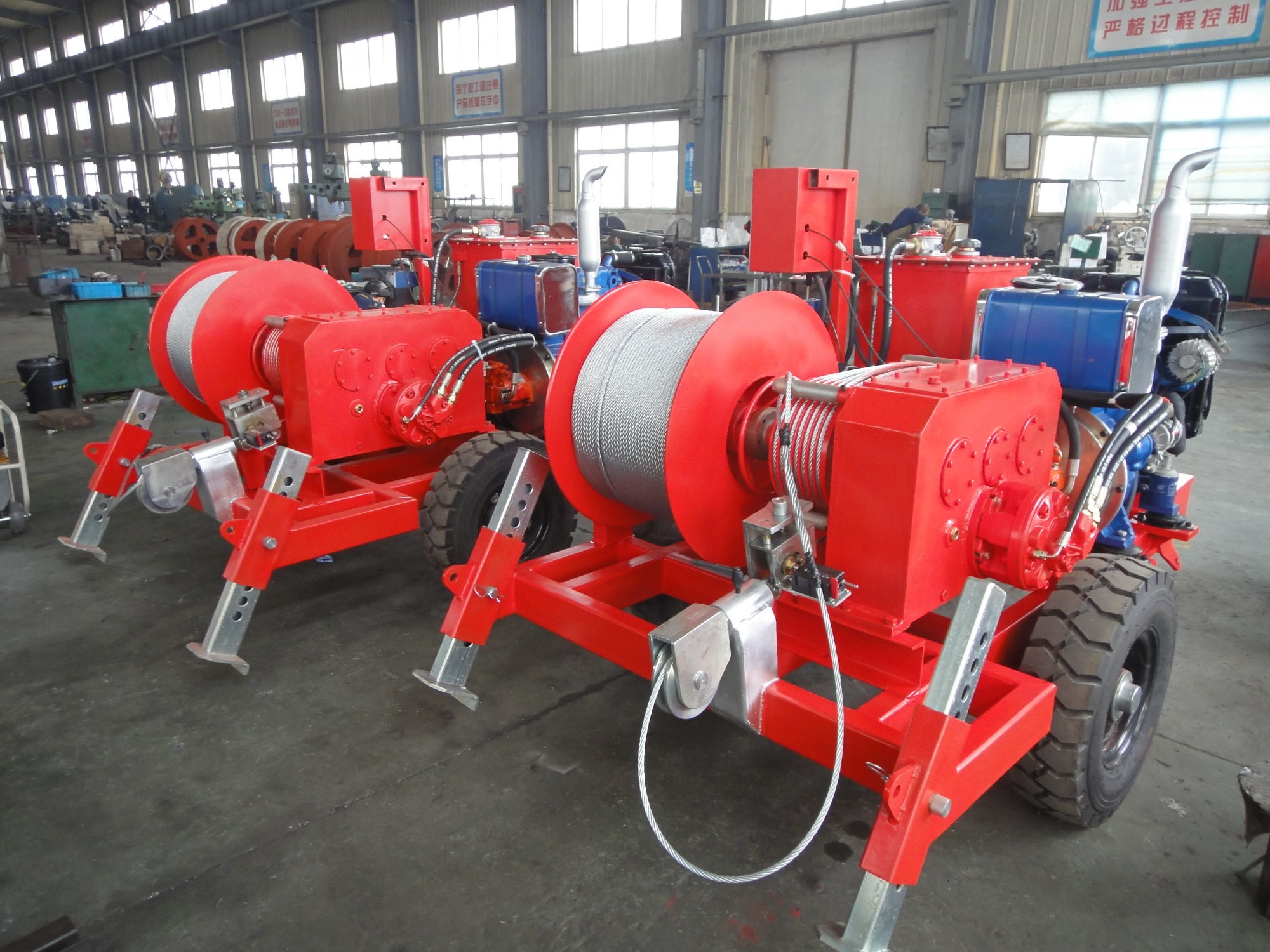

Underground Cable Pulling Machine hydraulic puller


型号 ModelDQ40DQ 60CT100
持续牵引力 Continuous pull force (kN)4060100
速度 speed (m/min)0~120-1517~83
钢丝绳直径 steel rope diameter (mm)Φ11Φ15Φ18
钢丝绳长度 steel rope length (m)650650400
发动机功率 Engine Power (hp)245649.2/36KW
发动机转速 Engine Speed (rpm)200020002000
外形尺寸 Dimension (m)3.67×1.60×1.653.78×1.70×1.714x2.2x1.8
重量 Weight (kg)200025003350

Features:

  • Equipped with Water cooled diesel engine system
  • Equipped with hydraulic pump and motor,  hydraulic steppless speed control system
  • with max. pulling force preset, pulling force could be displayed on the machine.
  • With over-load protect system, the machine will be stopped if the pulling cable get stuck in duct.
  • The speed could be displayed digitally, the pull length could be displayed on board.
  • With automatic winding system, the winding force could be adjusted.
  • With rigid axle for towing

Application: It is used to pull cable in underground cable installation operation.
