Order number

15141

15142

15143

Model

SIPZ3A

SIPZ5A

SIPZ-7

Applicable

reel

Diameter of coil (mm)

Φ900～1600

Φ1600～2400

Φ1800～2500

Width of coil (mm)

≤1350

≤1350

≤1700

Diameter of axle hole (mm)

Φ65-100

Φ65-100

Φ120

Maximum weight (kg)

3000

5000

7000

Brake torque (N.m)

1000

1000

2000

Linespeed (m/min)

80

80

80

Weight (kg)

200

215

420

·Notes:

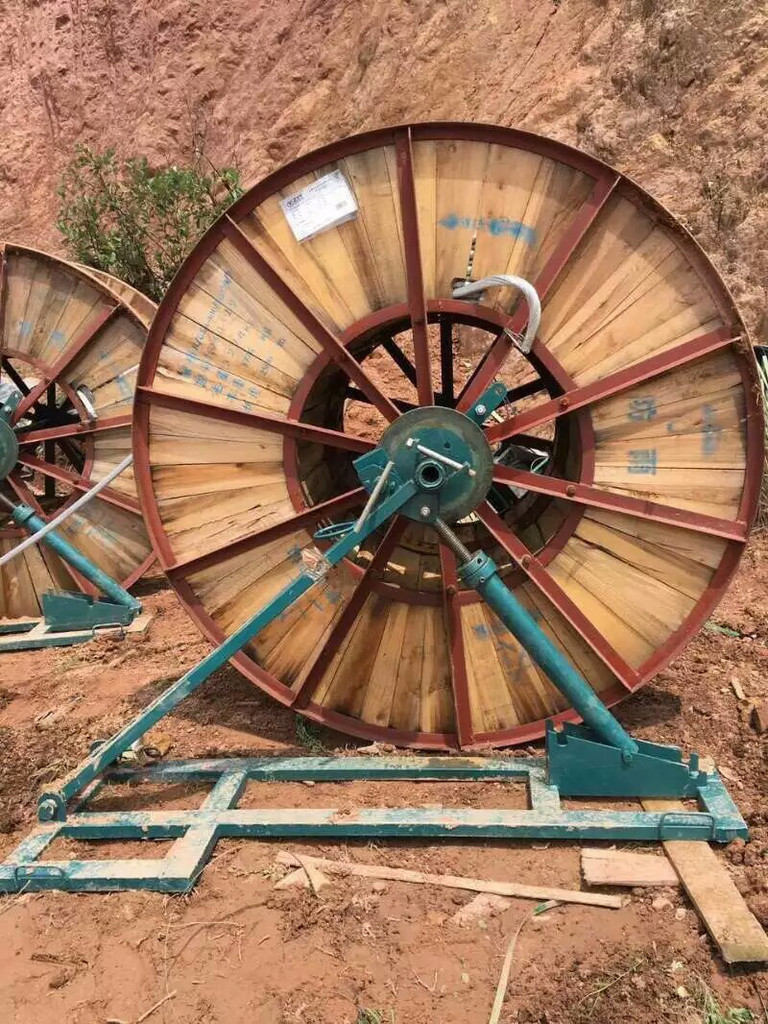

1. to support reel in tension releasing wire or mechanically linepulling wire and to brake the reel

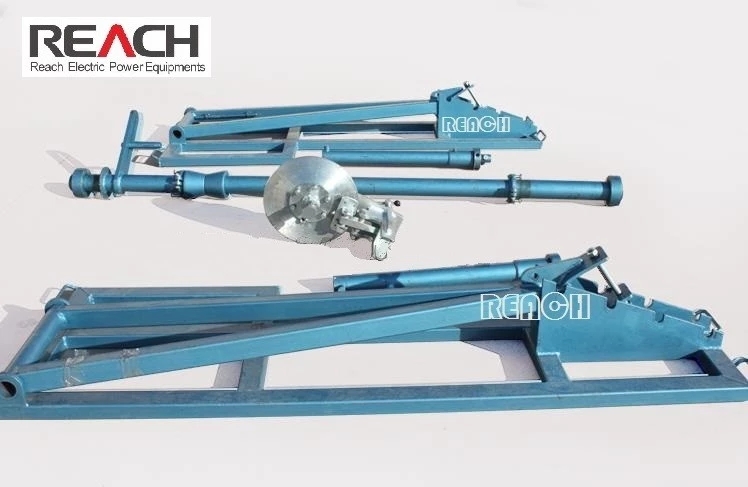

2. can be disassembled into 3 pieces ,convenient transportation .

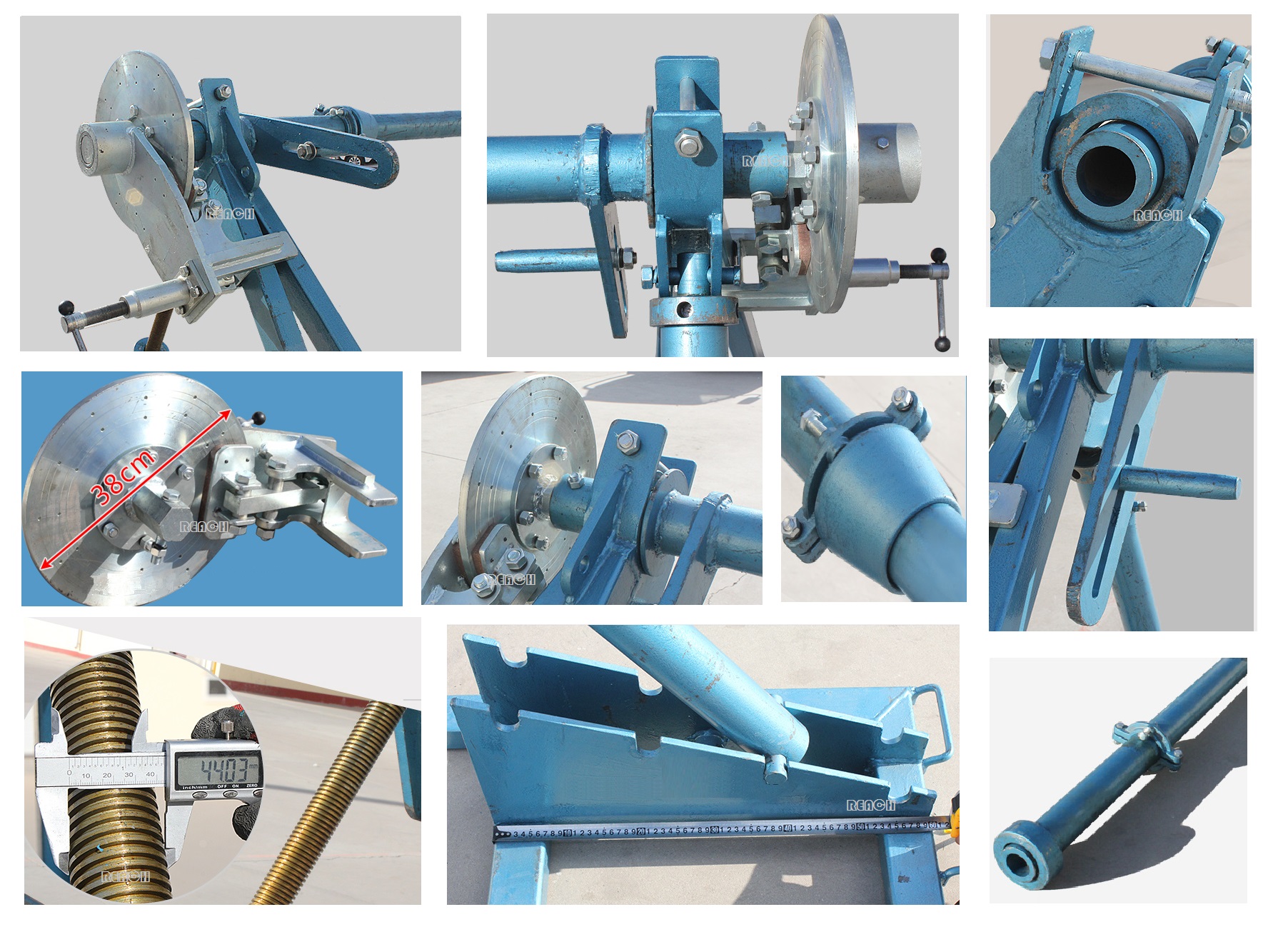

SIPZ-7 is double –disc brake
