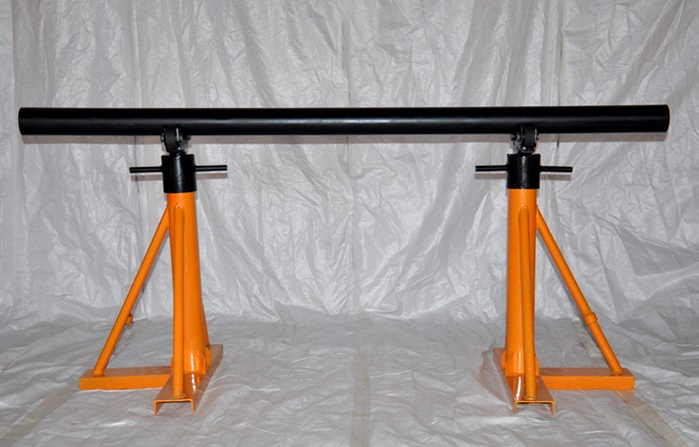

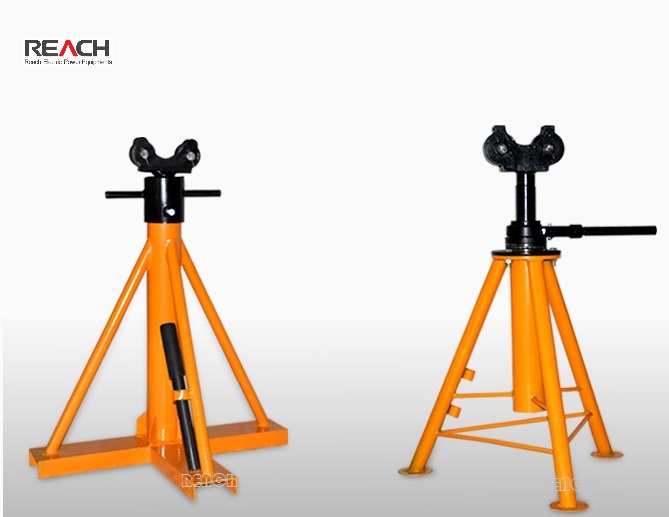

3 tons, 5 tons Cable drum reel pay-off rack device fiber optic cable pay-off bracket for Cable Laying Construction

Roller bearing, Flexible pay-off, Cast steel sleeve wheel and built-in bearing design Make the reel flexible, easy to release the cable

Model
load(Ton)
Hight (mm)
Width (mm)
Length (mm)
Adjust     range   (mm)
Beam dia(mm)
Beam         thickness (mm)
Beam length (mm)
CS-3S
3
700
600
350
700-1000
730
6
1500
CS-5S
5
800
600
600
800-1150
730
6
1700-1800
