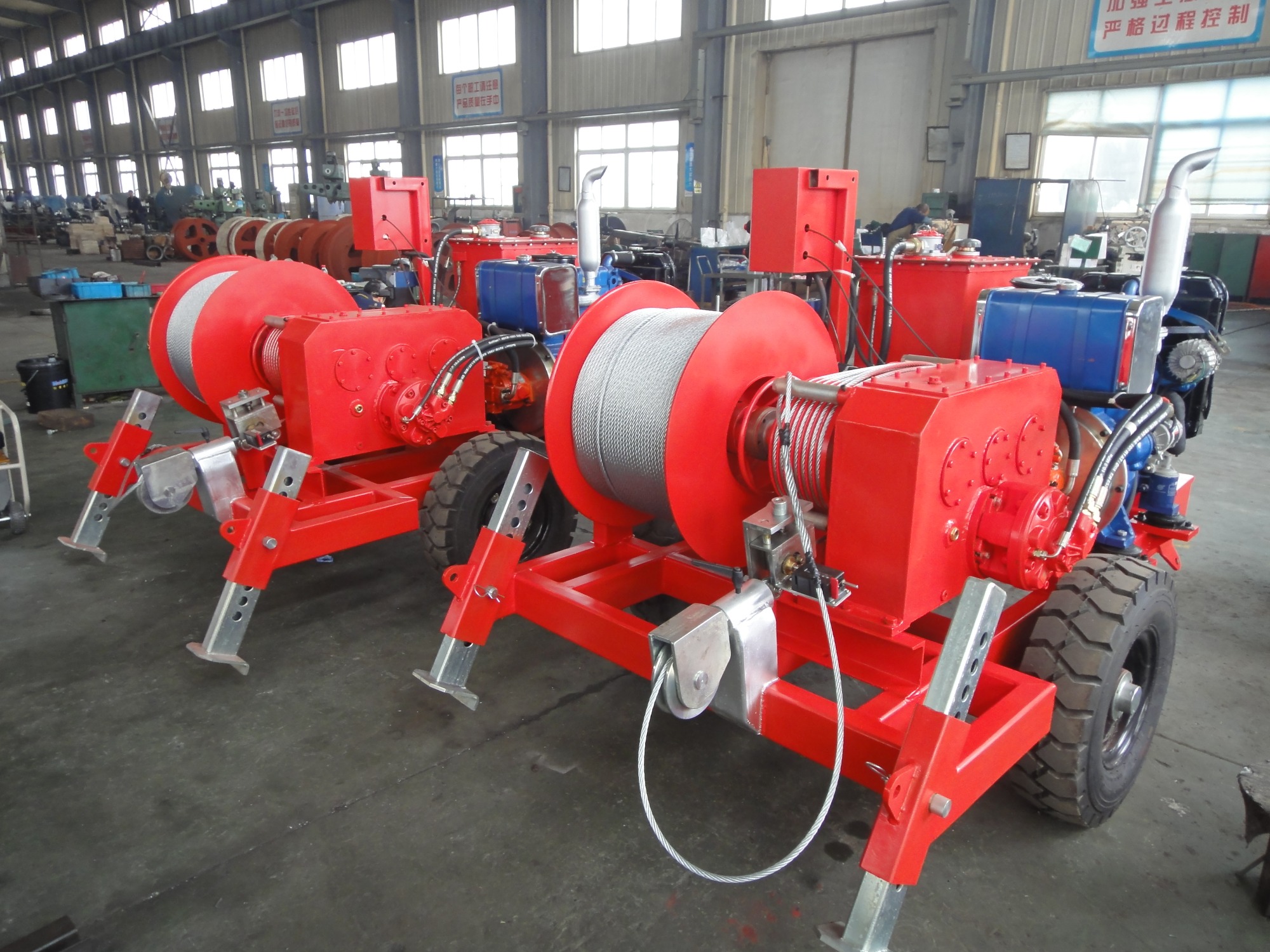

Model DQ Cable Pulling Winch

Underground Cable Pulling Machine hydraulic puller DQ40


Order number

21131

21135

Model

DQ20

DQ40

Continuous linepull (kN)

20

40

Linespeed (m/min)

0～14

0～12

Steelrope diameter (mm)

Φ9.3

Φ11

Steelrope length (m)

600

650

Motor

Power (hp)

13

24

Speed (rpm)

1800

2000

Dimension (m)

3.27×1.13×1.65

3.67×1.80×1.50

Weight (kg)

650

1100

·uses :to string earthground cable .

Features:

  • Equipped with Water cooled diesel engine system
  • Equipped with hydraulic pump and motor,  hydraulic steppless speed control system
  • with max. pulling force preset, pulling force could be displayed on the machine.
  • With over-load protect system, the machine will be stopped if the pulling cable get stuck in duct.
  • The speed could be displayed digitally, the pull length could be displayed on board.
  • With automatic winding system, the winding force could be adjusted.
  • With rigid axle for towing
Application: It is used to pull cable in underground cable installation operation.
Dimension (mm): 3670x1800x1500
Weight (kg): 2000
