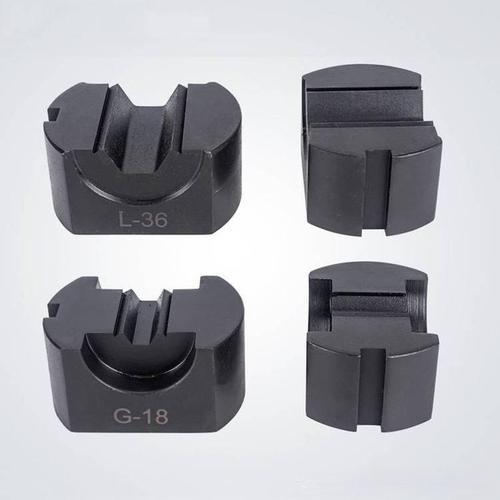

Hexagon compression die sets for conductor /earthwire

Order number

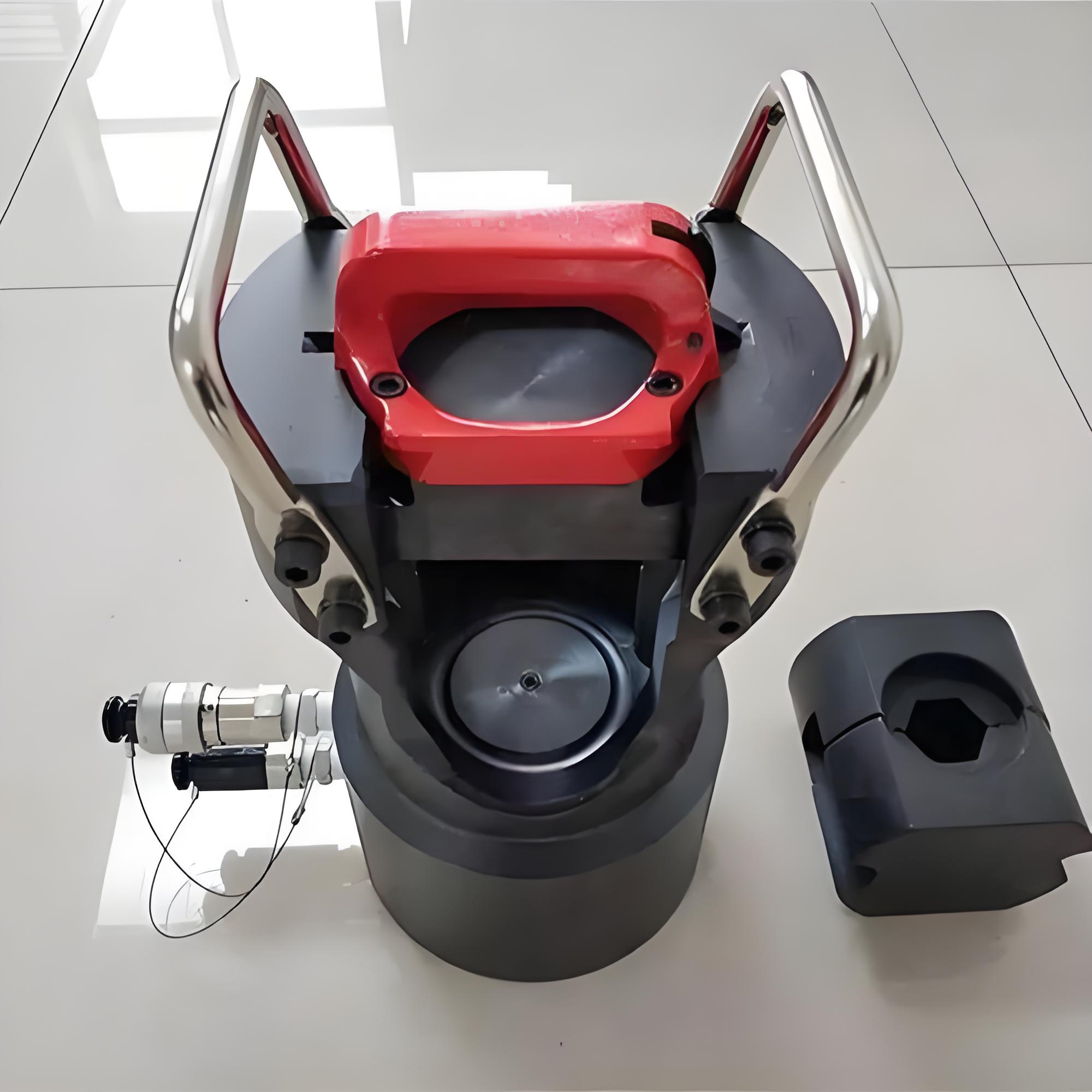

Model of matched compressor

Serial specification of compression die sets

16121

QY-25

Cupreous terminators:16-240 mm2

16122

QY-35

L-16.18.20.22.24.26.30.32.34.36

Cupreous terminators:16-500 mm2

16123

QY-65

L-26,28.30.32.34.36.38.40.45.50

G-12.14.16.18.20.22.24.26

Cupreous terminators:16-800mm2

16124

QY-125

L-26.28.30.32.34.36.38.40.45.50.52.55.60

G-12.14.16.18.20.22.24.26

Cupreous terminators:16-800 mm2

16125

QY-200

L-26.28.30.32.34.36.38.40.45.50.52.55.60

65.70.75.80

G-12.14.16.18.20.22.24.26.28.30.32

Cupreous terminators:16-800mm2

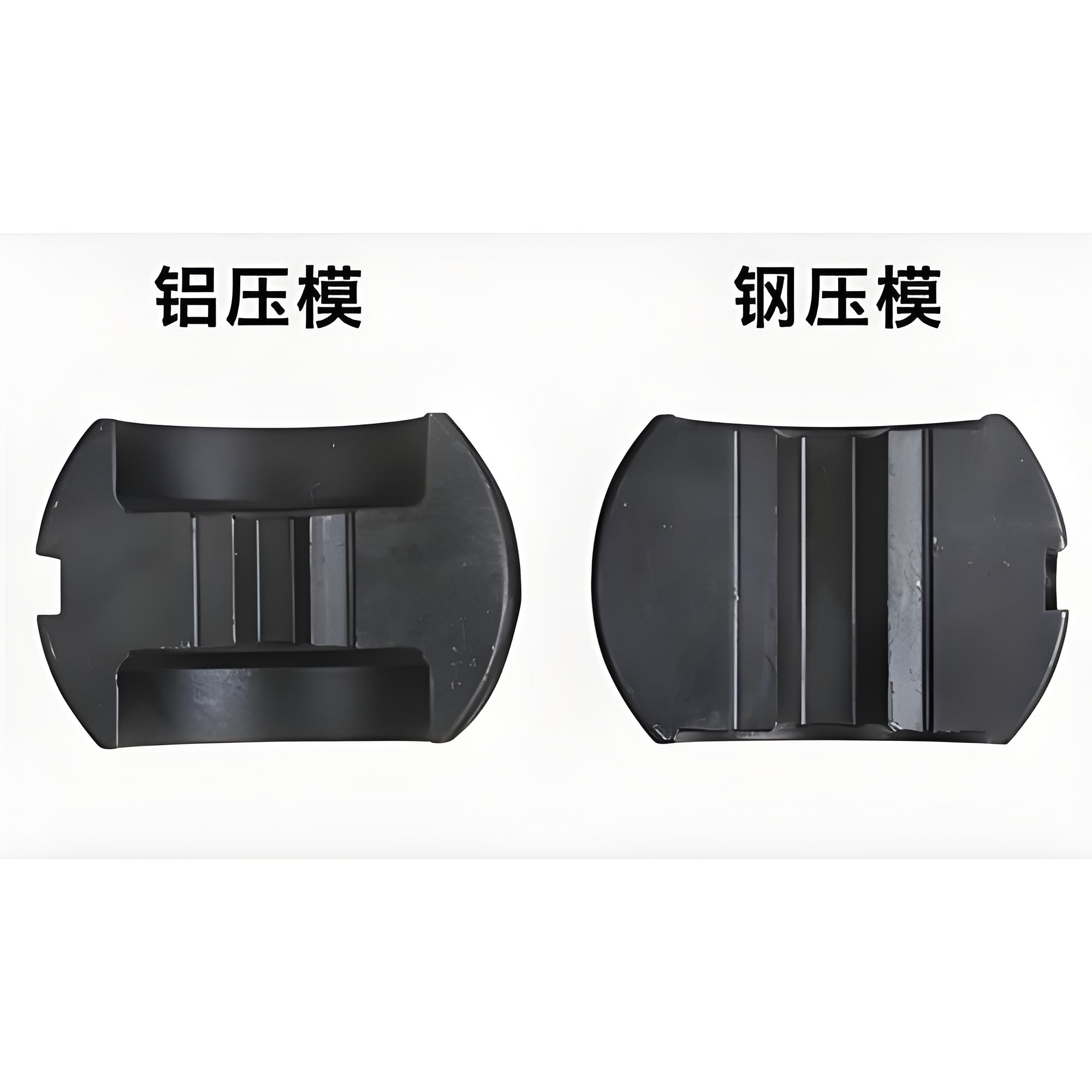

·Notes :the specification of die sets is steel (G)or aluminous (L)the outside diameter of compression joint tube or cupreous section area ,commonly choose the specification of aluminous is priority cupreous .the exceptional specification can be customized .
