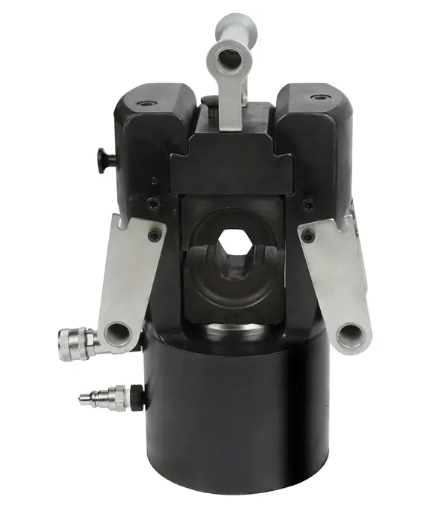

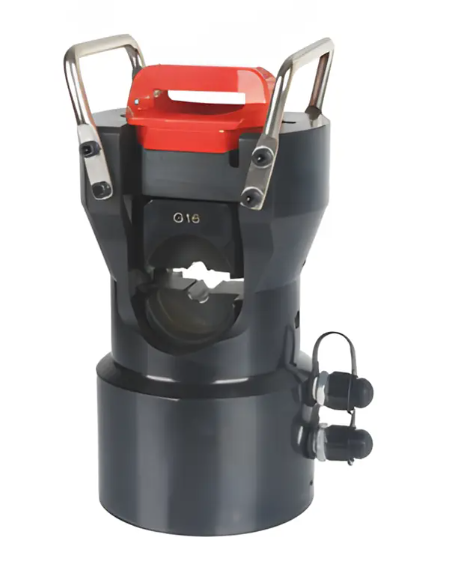

Model QY hydraulic compressor

Order number

Model

Maximum

Compression(kN)

Maximum oil pressure (MPa)

Applicable conductor

Stroke

(mm)

Weight (kg)

16101

QY-25

250

60

≤LGJ240

22

6

16102

QY-35

350

70

≤LGJ240

25

12

16103

QY-65

650

94

≤LGJ500

25

25

16104

QY-125

1250

94

≤LGJ720

25

40

16105

QY-200

2000

94

≤LGJ1440

25

85

Uses: to compress conductor ,earthwire and Cupreous- aluminous terminal .

Notes:

1.16101.16102 operated by the manual or single tube electric pump ;

2.16103-16105 operated by superhigh pressure hydraulic pump station

3. Matched compression die need to purchasing additionally .
